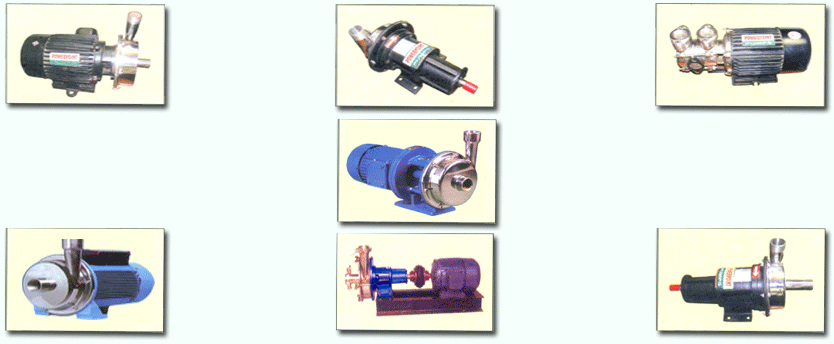

Stainless Steel Centrifugal Pumps "MSP" Series


Applications :-
* Milk, Cream, Butter Milk Condensed Milk.
* Fruit Juice, Beer, Wine, Sugar Syrup.
* Vitamin Solutions, Sugar & Confectionery.
* R.O. Water, DM Water, Pure Water.
* Water for Injections(WFI).
* Vegetable Oil, Mineral Oil, Lub Oil etc.
* Pharmaceutical Formulations, Syrup etc.
* Alkaline Solution/Alcoholic Drinks.
* Acids,Fine Chemicals
* Bottling Plants, Soft Drinks & Distillery.
* Food Processing/Liquid Food Stuff
* Water Treatment Plants.
* Colour dyes and Pigments/Paints
* Descaling Applications, Paper & Cement Industries.
* Detergent, Soaps, Paste
* Shampoo
* Textile Sizing, Dyeing & Finishing Systems.
* Natural Cellulose Fibre/Synthetic Fibre System
* Hot & Cold Water Pumping.
Features :-
* As all pumps are made from rolled stainless steel, mechanical properties are far superior then cast material.
* Pore free, non-pitting and non-adhering smoother surface, so less friction losses, and less crevice corrosion.
* Super finish surface also ensure no ingress or emission of germs or impurities during pumping or idling which is basic requirement of sterile/hygienic application.
* Designed for CIP(clean in place) or manual cleaning.
* Pumps are highly energy efficient and require less NPSH to function without cavitation .
* Pump can handle liquids havings viscosities up to 1500 centipoise.
* The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators.
* Pumps are available with open/semiopen impellers.
* The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
* Minimum working/rotating parts.
* Safe and quite operation levels.
* Gentle product handling with lower maintenance and downline cost.
* Dynamically combinations of seal faces as per customer's requirement (single seal/double seal, seal external cooling).
* Suitable for standard motor or flange type or foot cum flange type motor or engine.
* Monoblock or bare pumps or with trolley.
* Also with flame proof motors.
* Various types of connections like-triclove joints SMS, flanges or threaded nipple/coupling.
* Pumps with adjustable legs, available on request.
