| Min. Pressure |
100 Psi |
| Max. Pressure |
150 Psi |
| Pump RPM |
900 |
| Stroke Length |
20 mm |
| Piston Diameter |
30 mm |
| Pump Body |
CI or Alu. Die-cast |
| Pressure Chamber |
CI |
| Piston |
SS 304 or SS 316 |
| V-Belt Size |
B-34 |
| Electric Motor |
1.00 hp. 1440 RPM |
|
|
| Min. Pressure |
200 Psi |
| Max. Pressure |
350 Psi |
| Pump RPM |
600 |
| Stroke Length |
20 mm |
| Piston Diameter |
30 mm |
| Pump Body |
CI or Alu. Die-cast |
| Pressure Chamber |
CI |
| Piston |
SS 304 or SS 316 |
| V-Belt Size |
B-36 |
| Electric Motor |
1.50 hp. 1440 RPM |
|
 |
| Min. Pressure |
300 Psi |
| Max. Pressure |
450 Psi |
| Pump RPM |
540 |
| Stroke Length |
20 mm |
| Piston Diameter |
30 mm |
| Pump Body |
CI or Alu. Die-cast |
| Pressure Chamber |
CI |
| Piston |
SS 304 or SS 316 |
| V-Belt Size |
B-40 |
| Electric Motor |
2.00 hp. 1440 RPM |
|
 |
 |
 |
 |
| Min. Pressure |
200 Psi |
| Max. Pressure |
350 Psi |
| Pump RPM |
600 |
| Stroke Length |
20 mm |
| Piston Diameter |
30 mm |
| Pump Body |
CI
or Alu. Die-cast |
| Pressure Chamber |
SS 304 or SS 316 |
| Piston |
SS 304 or SS 316 |
| V-Belt Size |
B-36 |
| Electric Motor |
1.50 hp. 1440 RPM |
|
| Min. Pressure |
300 Psi |
| Max. Pressure |
450 Psi |
| Pump RPM |
540 |
| Stroke Length |
20 mm |
| Piston Diameter |
30 mm |
| Pump Body |
CI or Alu. Die-cast |
| Pressure Chamber |
SS 304 or SS 316 |
| Piston |
SS 304 or SS 316 |
| V-Belt Size |
B-40 |
| Electric Motor |
2.00 hp. 1440 RPM |
|
|
|
 |
| Applications :- |
|
Standard Accessories :- |
| |
|
|
| * |
Air Port & Ship Yards. |
| * |
Railway Workshop & Cleaning Yards |
| * |
State Transport & Workshop |
| * |
Industrial & agriculture Purpose |
| * |
Auto Two & Four Wheel Workshop |
|
|
| * |

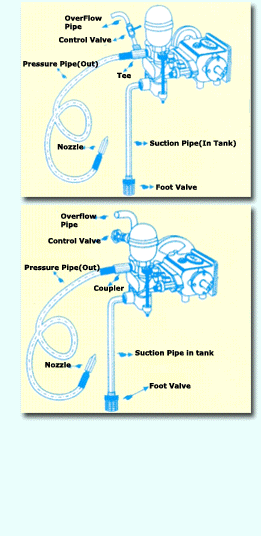

Overflow Control Valve |
| * |
Pipe Nipple |
| * |
Pipe Bend |
| * |
Pipe T |
| * |
Motor - Pump Pulley |
| * |
Nozzle Set |
| * |
Pump Stand |
| * |
Piston Ring Set |
|
