PBO SERIES
SERIES PPP
PBO SERIES
POLYPROPYLENE PUMPS
HEAVY DUTY UPTO 7.5 HP

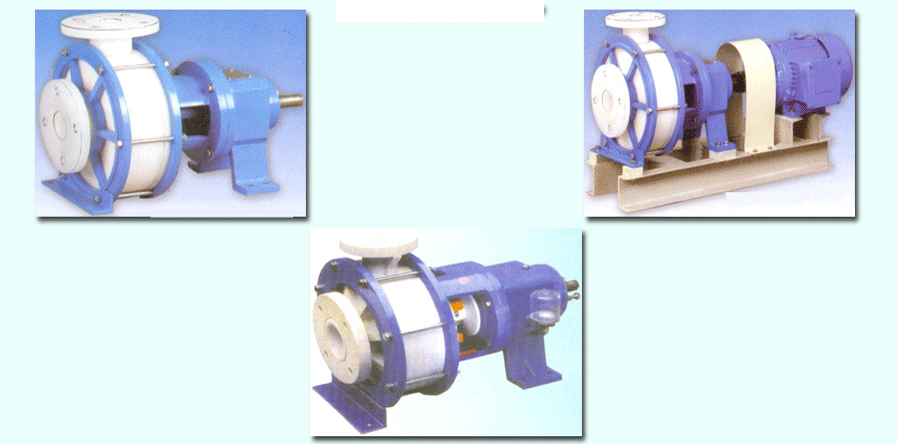

SERIES PPP Heavy Duty Horizontal Process Pumps in PP. Suitable for Acids handling and liquids with corrosive and abrasive particles. 24 Hours continuous duty operation. Machanical seal with ceramic / SS-316 shaft sleeve. Models upto 7.5 HP
SERIES PPP AT 2900 RPM:-
Pump Model HP Suc x Del Size Head in Mtrs/Capacity in M³/hr
4 6 10 14 18 24 28 32 36
PPP-100 1 25x25
11 9 5
PPP-120 2 40x40
  26 24 18 6
PPP-130 3.0 40x40
    25 19 12 8 (@20 m head)
PPP-160R 3 40x40
    26 20 10 3 AT 22 Mtrs
PPP-160 5 75x40
    35 30 26 16 6
PPP-170 7.5 75x50
    55 45 40 32 26 15 3
SERIES PPP AT 1500 RPM:-
Pump Model HP Suc x Del Size Head in Mtrs/Capacity in M/hr
6 8 10 12 14 18 22
PPP-50R 2 40x40
24 12 6
PPP-50 3 75x40
40 30 23 15 10
PPP-55 5 75x50
  40 37 28 20 6

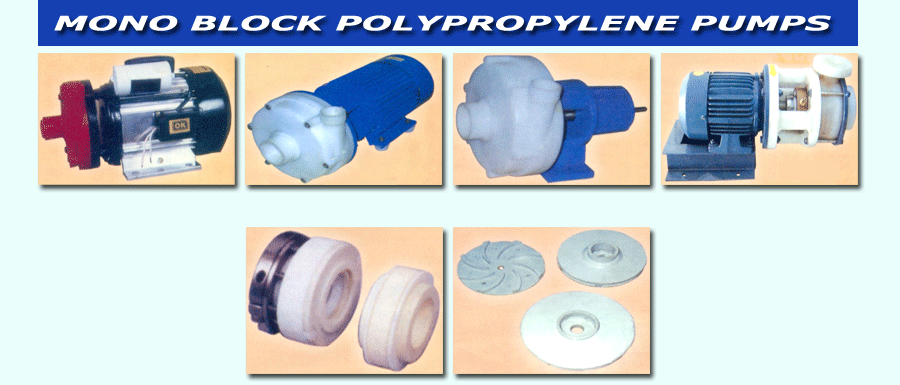

SERIES MPP
Small and handy PP monoblock pumps. PTFE Gland packing with SS-316 shaft having Teflon & Ceramic coating. Useful for chemical handling on small and medium scale. User friendly operation and maintenance

FEATURES
* Small size bare / monobloc poly propelene pumps.
* Fitted with seal / gland or Teflon bellow Machanical seal.
* Shaft is of SS-304 / 316 with ceramic coating and (Teflon coating optional)
* Very economical models as pump made with minimum parts.
* Very easy maintenance

PERFORMANCE CHART (with semi open impeller)
Model HP Size
Head in Mtrs
6 8 10 12 16 20
MPP-1 0.25 12 X 12
22 18 0
MPP-2 0.5 25 X 25
0 120 110 90 -
MPP-3 1 25 X 25
0 150 142 118 60 -
MPP-4 1.5 40 X 25
0 162 148 120 90 44
MPP-5 1 25 X 25
130 90 50 0 - -
preformance are at 2900 RPM, 50Hz and tested with clear water.
Due to Constant R & D activity, details are subject to change without prior notice.

APPLICATIONS Phosphoric acid plants, Gas washing plants, Rayon plants, Caustic soda plants for corrosive acids & basics, effluent treatment handling.

   SERIES PHPP/ PVGP

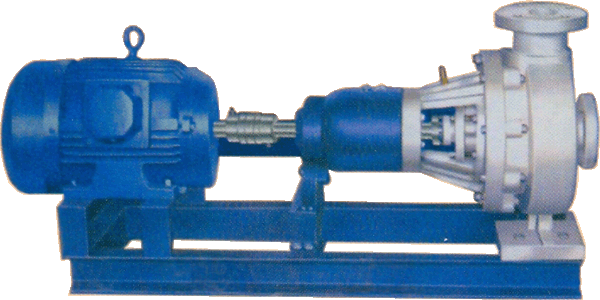

Horizontal PP Pump

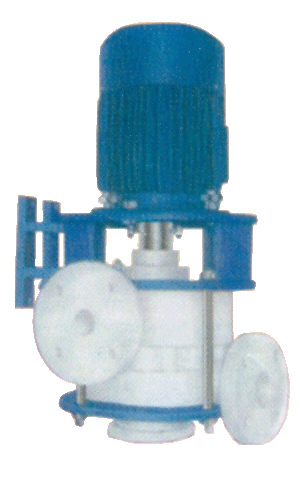

Vertical Glandless Pump
Special Features of PHPP Series
*
Back pull out casing, very easy to maintain
*
Heavy duty Casted bearing housing
PVGP Series
*
No seal, stuffing box & gland
*
pump can run even in dry condition
*
Maintenance free
COMMON FEATURES
* Casings are made from injection moulded poly propelene (single piece)
* Impellers - Semi open made from UHMW. Low NPSH performance.
* Stuffingbox - made from UHMW, suitable for gland packing and Teflon bellow mechanical seal
* Shaft SS-316, Protected by shaft sleeve of Alloy - 2 or Alumina filled Telfon or Ceramic

WATER RATING CHART OF POLYPROPYLENE PUMPS
Model HP x RPM Pump Size
Head in Mtrs
6 10 12 15 20 25 30 35 40 Imp Dia
PHPP-25/1/2
PVGP-25/1/2
1 X 2900 0 25 X 25
130 50 0 - - - - - - 110 MM
PHPP-40/2/4
PVGP-40/2/4
2 X 1450 50 X 40
75 - - - - - - - - 150 MM
PHPP-40/2/2
PVGP-40/2/2
2 X 2900 40 X 25
250 150 100 - - - - - - 130 MM
PHPP-50/2/4
PVGP-50/2/4
2 X 1450 50 X 40
266 183 - - - - - - - 190 MM
PHPP-50/3/4
PVGP-50/3/4
3 X 1450 50 X 40
400 300 200 0 - - - - - 290 MM
PHPP-50/3/2
PVGP-50/3/2
3 X 2900 50 X 40
480 415 350 325 200 0 - - - 140 MM
PHPP-50/5/2
PVGP-50/5/2
5 X 2900 50 X 40
530 450 440 415 330 260 133 - - 150 MM
PHPP-75/5/4
PVGP-75/5/4
5 X 1450 75 X 65
- 500 430 400 160 - - - - 200 MM
PHPP-75/10/2
PVGP-75/10/2
10 X 2900 75 X 65
- 830 750 700 650 580 500 330 300 190 MM
