Type of Industries like chemical, textile, fertilizer, paper & pulp, petrochemical, food processing sugar, starch, refinery, powder plant, dairy, pharmaceutical and bulk drugs, oil extraction etc.

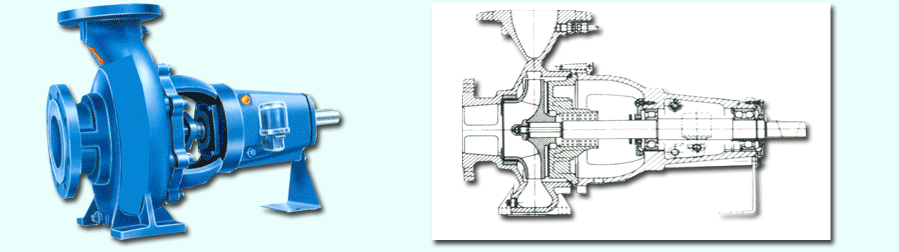

High efficiency volute type. Suction and discharge nozzle as well as the supporting feet are cast integral with the casing.

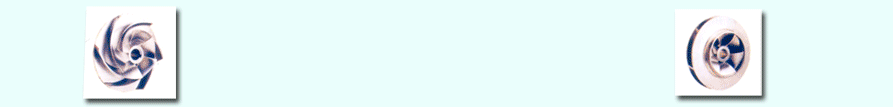

Enclosed type and accurately balanced dynamically. Hydraulically balanced by back vanes and for large impellers by balancing holes.
Three shaft units cover complete range of pumps. Made of high tensil steel and accurately grinded all over.
STUFFING BOX :-
Available with suitable gland packing. Mechanical seal arrangement available upon request.
MATERIAL OF CONSTRUCTION :-
IMPELLER :- Cast Iron /SS-316, Cast Steel/Bronze etc.
PUMP CASING :- Cast Iron/SS-316, Cast Steel/Bronze etc.
SHAFT :- SS-410/SS-316-304
SEALING :- Mechanical Seal/Gland Packing.

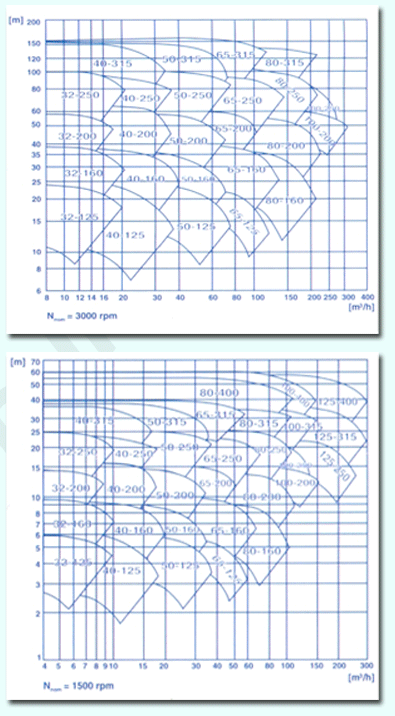

Capacity :- up to 400M³/Hr
Head :- up to 100 Mt
Temparature :- up to 350° C
