POWERPOINT
HIGH PRESSURE PISTON PUMPS
Min. Pressure 100 Psi
Max. Pressure 150 Psi
Pump RPM 900
Stroke Length 20 mm
Piston Diameter 30 mm
Pump Body CI or Alu. Die-cast
Pressure Chamber CI
Piston SS 304 or SS 316
V-Belt Size B-34
Electric Motor 1.00 hp. 1440 RPM
Min. Pressure 200 Psi
Max. Pressure 350 Psi
Pump RPM 600
Stroke Length 20 mm
Piston Diameter 30 mm
Pump Body CI or Alu. Die-cast
Pressure Chamber CI
Piston SS 304 or SS 316
V-Belt Size B-36
Electric Motor 1.50 hp. 1440 RPM
Min. Pressure 300 Psi
Max. Pressure 450 Psi
Pump RPM 540
Stroke Length 20 mm
Piston Diameter 30 mm
Pump Body CI or Alu. Die-cast
Pressure Chamber CI
Piston SS 304 or SS 316
V-Belt Size B-40
Electric Motor 2.00 hp. 1440 RPM
Min. Pressure 200 Psi
Max. Pressure 350 Psi
Pump RPM 600
Stroke Length 20 mm
Piston Diameter 30 mm
Pump Body CI or Alu. Die-cast
Pressure Chamber SS 304 or SS 316
Piston SS 304 or SS 316
V-Belt Size B-36
Electric Motor 1.50 hp. 1440 RPM
Min. Pressure 300 Psi
Max. Pressure 450 Psi
Pump RPM 540
Stroke Length 20 mm
Piston Diameter 30 mm
Pump Body CI or Alu. Die-cast
Pressure Chamber SS 304 or SS 316
Piston SS 304 or SS 316
V-Belt Size B-40
Electric Motor 2.00 hp. 1440 RPM

Mach Power Points high pressure piston pumps, with various efficiencies and performances. Since one long decade we have been meeting the industrial, domestic as well as agricultural requirements of the nation along with the Middle East countries.

Since a decade we have been the pioneer and our pumps, valves and motor parts have been sold within the nation and beyond it. Our pumps are highly reciprocating and have the longest durability among all their counterparts found in this industry. The design of these high pressure piston pumps is such that, the fluid propelled forward with the optimum pressure and in a smooth way. Consequently, this increases the suction power by reducing the cavitations. Standard accessories that come with this include, overflow control valve, piston ring set, nozzle set, pump stand, pipe nipple, etc.

Our piston pumps have greater applications in air ports and ship yards along with agricultural fields, cleaning yards, and transportation sectors.

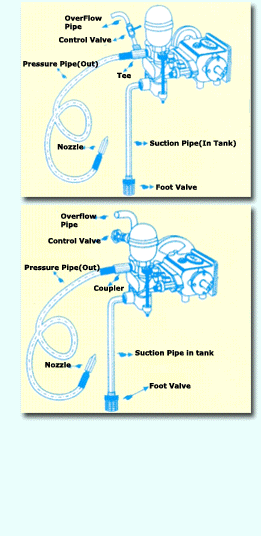

Applications :-   Standard Accessories :-

* Air Port & Ship Yards.
* Railway Workshop & Cleaning Yards
* State Transport & Workshop
* Industrial & agriculture Purpose
* Auto Two & Four Wheel Workshop

* Overflow Control Valve
* Pipe Nipple
* Pipe Bend
* Pipe T
* Motor - Pump Pulley
* Nozzle Set
* Pump Stand
* Piston Ring Set
